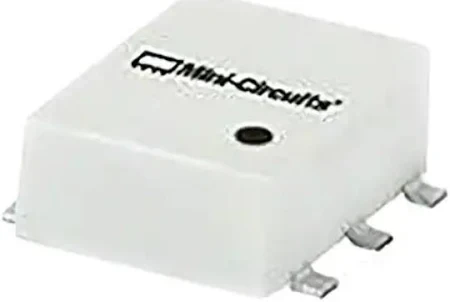

ADT2-1T-1P+

The ADT2-1T-1P+ is a wideband RF transformer (balun) designed by Mini-Circuits for signal conversion and impedance matching in RF and microwave circuits.

Key Features Type: RF Transformer / Balun Function: 1:2 impedance ratio transformer (balun type) Frequency Range: 8 MHz to 600 MHz Impedance Ratio: 1:2 (50 Ω to 100 Ω) Amplitude Balance: ±0.2 dB typical Phase Balance: ±2° typical Insertion Loss: 0.6 dB typical Return Loss: > 15 dB typical across band Power Handling: 250 mW max Package Type: 6-lead surface-mount (SMD) package Package Size: 0.15" × 0.15" × 0.15" (3.81 mm × 3.81 mm × 3.81 mm) Mounting: Surface mount (SMD, RoHS compliant) Operating Temperature Range: –40 °C to +85 °C Storage Temperature Range: –55 °C to +100 °C RoHS / REACH: Compliant and lead-free Manufacturer Part Number: ADT2-1T-1P+ Performance Highlights Wide frequency range up to 600 MHz Excellent amplitude and phase balance for minimal signal distortion Low insertion loss and high return loss for efficient signal transfer Compact and lightweight SMD package suitable for high-density designs Rugged construction for stable performance under temperature variation Applications RF and microwave impedance matching Balanced/unbalanced (balun) signal conversion Differential amplifier and mixer interfaces Broadband communication systems Test and measurement equipment RF signal coupling and isolation networks Hot Tags: adt2-1t-1p+, China adt2-1t-1p+ suppliers, manufacturers
