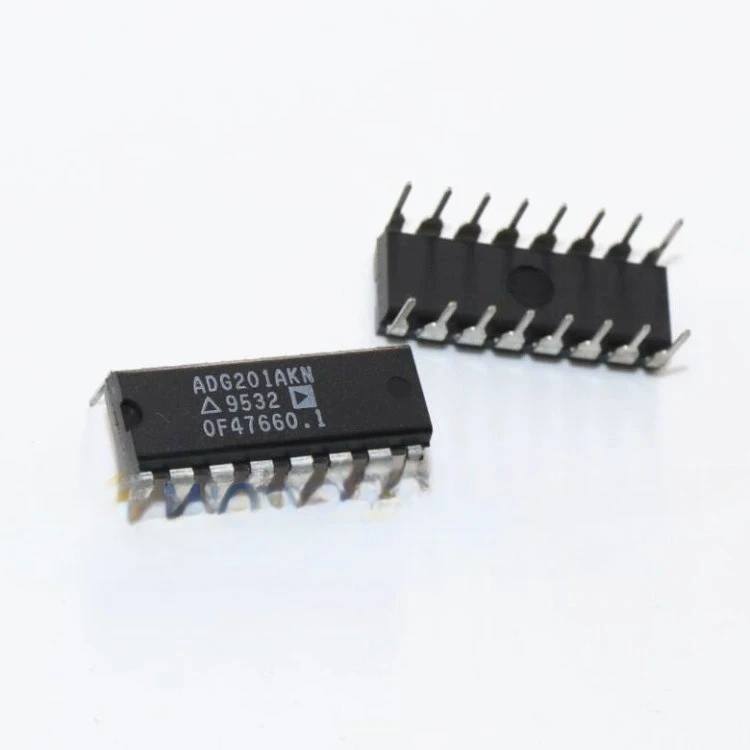

ADG201AKN

The ADG201AKN are monolithic CMOS devices comprising four independently selectable switches.They are designed on an enhanced LC2MOS process which gives an increased signal handling capability of+15V.These switches also feature high switching speeds and low RoN.

The ADG201AKN are monolithic CMOS devices comprising four independently selectable switches.They are designed on an enhanced LC2MOS process which gives an increased signal handling capability of+15V.These switches also feature high switching speeds and low RoN. Features The ADG201AKN is a quad SPST switch CMOS device that boasts of several great features. Let's take a look at some of these features. Firstly, the ADG201AKN has a low RoN which ensures a minimal voltage drop across the switch. This makes it perfect for applications where accuracy and precision are critical. Additionally, the low RoN means that the switch dissipates minimum heat energy, thereby reducing power consumption. Secondly, the ADG201AKN has low leakage. This makes sure that even in high-impedance circuits, the switch delivers accurate and precise results. It is an ideal device for use in medical equipment, telecommunication, and other precision-based applications. Finally, the ADG201AKN has low power dissipation and is highly energy efficient. This makes it perfect for battery-operated devices that require long battery life. In summary, the ADG201AKN is a superior second source switch device with several great features. It has low RoN, low leakage, low power dissipation, and is ideal for use in precision-based applications. Overall, it is a valuable addition to any electrical engineer's toolbox. Parameters Packaging method Input voltage Operational temperature PDIP-16 10 V ~ 15 V -40 to 85℃ Postive Photo Pin Configuration Hot Tags: adg201akn, China adg201akn suppliers, manufacturers
