Key Specifications & Features
Channels: 2 analog input channels. Mouser Electronics+1
Resolution: 14 bits.
Maximum Sample Rate: Up to 125 MSPS.
Supply Voltage: 1.8 V single-supply for both analog and digital domains.
Serial LVDS (SLVDS) Output Interface: A 2-wire serialized LVDS output interface reduces pin count and supports high throughput.
Input Clock Buffer: Includes a divide-by-1, -2 or -4 input clock buffer.
Performance Metrics: Typical SNR ~72.4 dBFS, SFDR ~87 dBc at f_IN = 70 MHz.
Low Power Consumption: Approximately 116 mW per channel at 125 MSPS.
Channel Isolation: Very high, ~105 dB.
Other Features: Internal dither, chopper architecture, multi-chip synchronization support.
Applications
The ADC3244IRGZR is designed for systems that require high linearity, low power, and high throughput, such as:
High-speed data acquisition systems
Communication systems (when digitizing front-end analog signals)
Instrumentation and test equipment
Multi-channel synchronized ADC systems
Ordering & Packaging Information

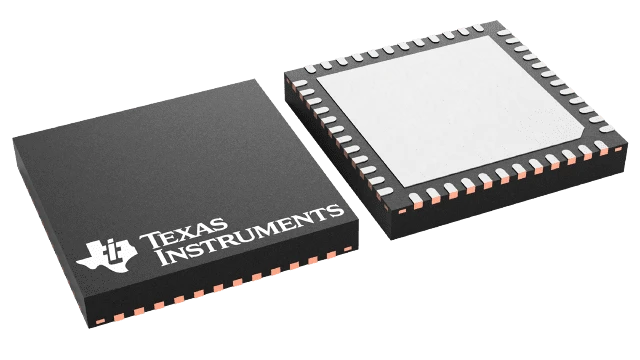

Package: VQFN-48 (7 mm × 7 mm) RGZ variant.
Operating Temperature Range: –40 °C to +85 °C industrial grade.
Design Note: Requires high-speed input driver, proper layout for low noise and good analog performance.
