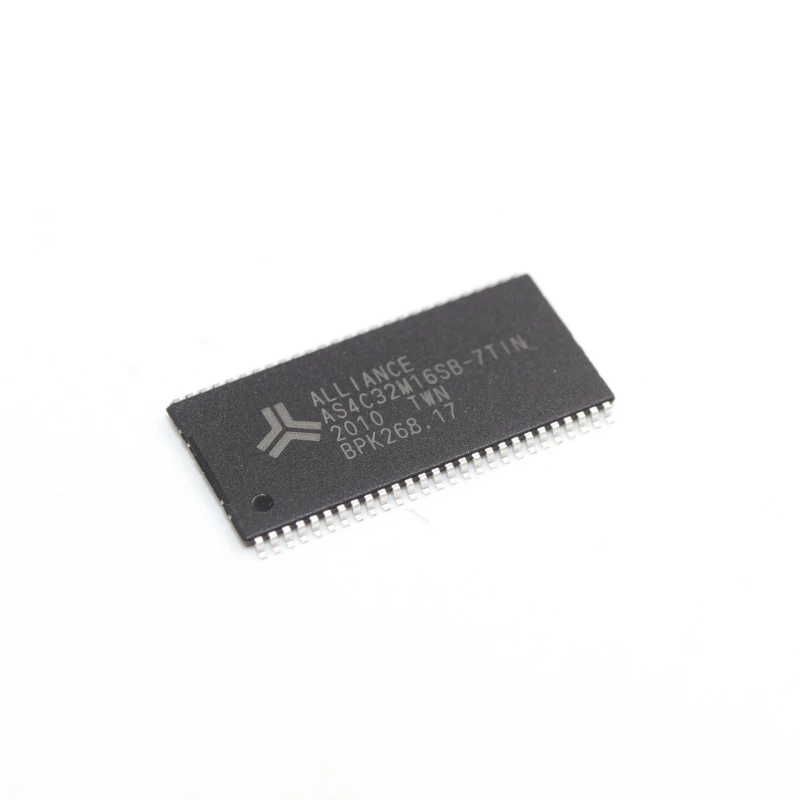

AS4C32M16SB-7TIN

The 512Mb SDRAM is a high-speed CMOS synchronous DRAM containing 512 Mbits. It is internally configured as 4 Banks of 8M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK).

The 512Mb SDRAM is a high-speed CMOS synchronous DRAM containing 512 Mbits. It is internally configured as 4 Banks of 8M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Features The AS4C32M16SB-7TIN SDRAM memory chip is an advanced and high-performance memory chip that is designed for fast and reliable access to data. This chip has a fast access time from the clock, which ensures that data can be read and written quickly and efficiently. One of the key features of this memory chip is its fast clock rate of 166/143 MHz, which allows it to operate at a high speed. Its fully synchronous operation ensures that data is transferred between the memory chip and the processor in a very efficient and reliable manner. The internal pipelined architecture of the AS4C32M16SB-7TIN memory chip enables it to transfer data at a much higher rate than other memory chips. Additionally, this chip has programmable mode registers which can be adjusted to meet the specific requirements of the user. Moreover, the chip has auto-refresh and self-refresh functions, which ensure that data is kept safe and secure. The CKE power-down mode is another feature that helps in reducing power consumption. Overall, the AS4C32M16SB-7TIN SDRAM memory chip is an advanced and high-performance chip that offers fast access time, fast clock rate, fully synchronous operation, internal pipelined architecture, programmable mode registers, auto refresh, self-refresh, and CKE power-down mode. This chip is ideal for applications that require highly reliable and efficient memory chips. Parameters Packaging method Input voltage Operational temperature TSOP-54 3.3V -40℃ ~ 85℃ Application memory bandwidth and well suited to PC Postive Photo Pin Configuration Hot Tags: as4c32m16sb-7tin, China as4c32m16sb-7tin suppliers, manufacturers
