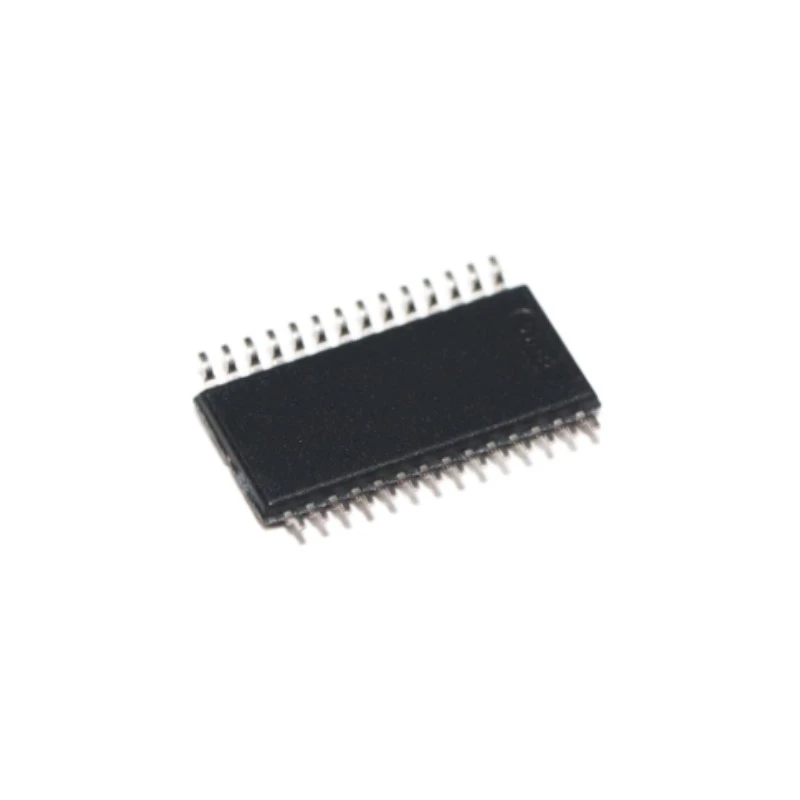

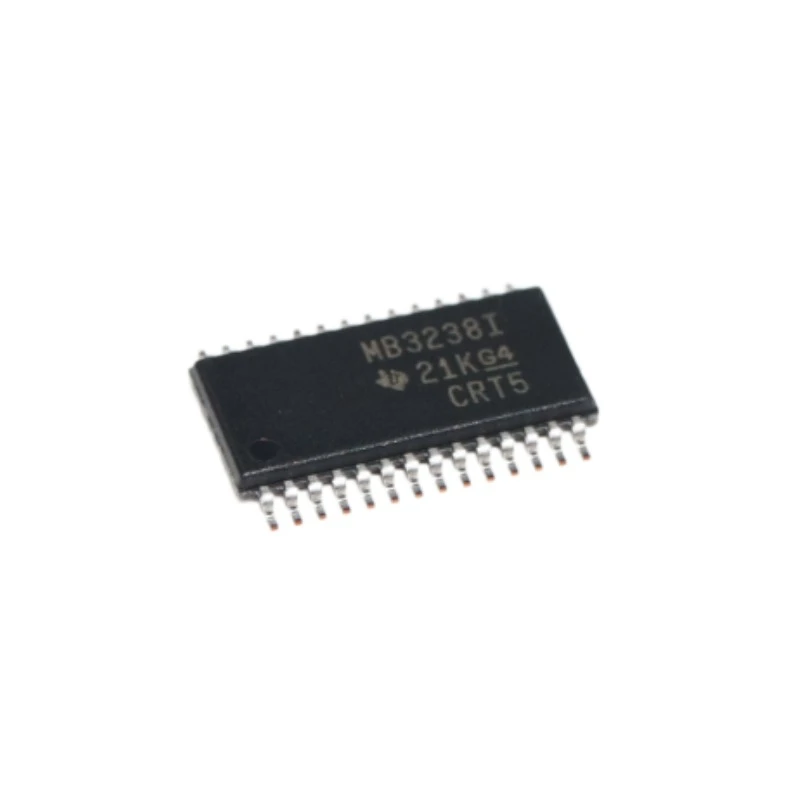

MAX3238IPW

The MAX3238 consists of five line drivers, three line receivers, and a dual charge-pump circuit with ±15-kV ESD (HBM) protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between notebook and subnotebook computer applications.

The MAX3238 consists of five line drivers, three line receivers, and a dual charge-pump circuit with ±15-kV ESD (HBM) protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between notebook and subnotebook computer applications. Features The MAX3238IPW is a type of RS-232 driver and receiver that can handle up to 250 kbit/s data transfer rates. What's great about this device is that it has five drivers and three receivers, ensuring that its users can enjoy reliable data transmissions. Moreover, its always-active noninverting receiver output is designed to make sure that the receiver output doesn't get inverted, which could lead to incorrect data transmissions. What's more, the device has an alternative high-speed pin-compatible option, which gives users the flexibility to choose based on their needs. Another excellent feature of the MAX3238IPW is its low standby current, which allows it to consume less power when not in use. This means that its users can save on power costs and prolong the battery life of their devices. Parameters Packaging method Input voltage Operational temperature TSSOP-28 3-5.5V -40°C to +85°C Application Battery-Powered Systems, PDAs Postive Photo Pin Configuration Hot Tags: max3238ipw, China max3238ipw suppliers, manufacturers, ethernet transceiver, handheld transceiver, wireless transceiver, optical transceiver, radio transceiver, fiber optic transceiver
