Electronic Component Transceiver 74LVCH2T45GS
- Part number

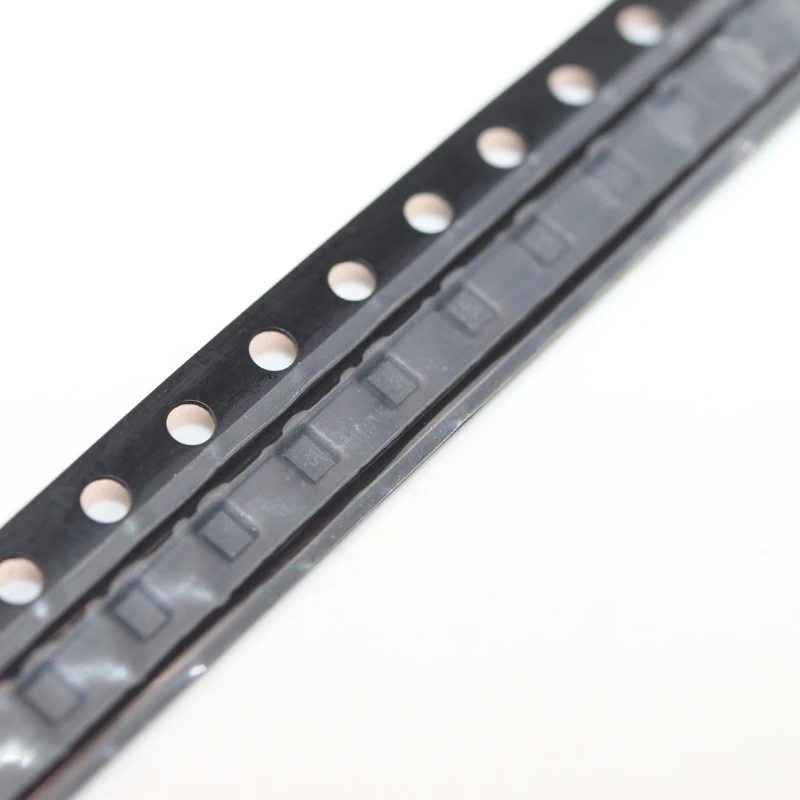

- Electronic Component Transceiver 74LVCH2T45GS
- Category
- Logical Circuit / Transceiver
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview

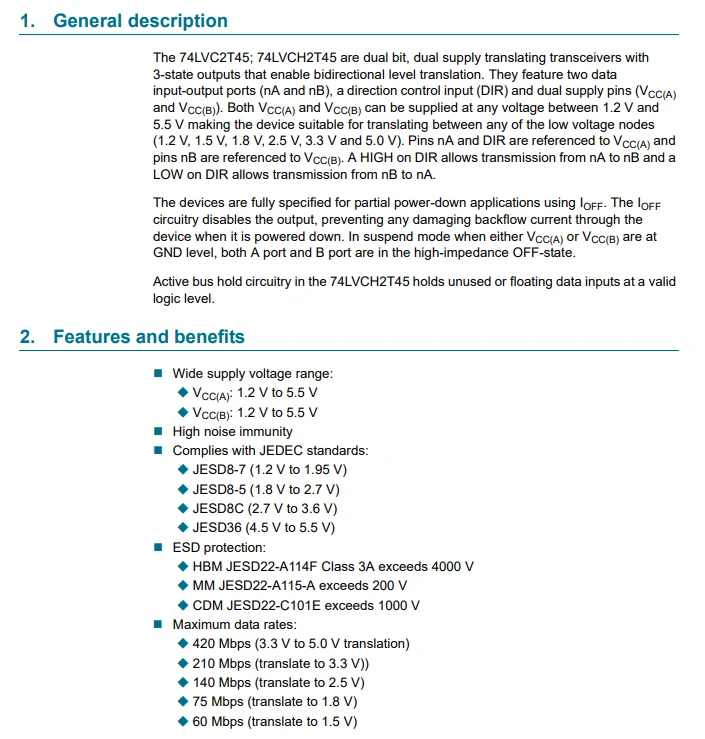

The 74LVC2T45; 74LVCH2T45 are dual bit, dual supply translating transceivers with 3-state outputs that enable bidirectional level translation. They feature two data input-output ports (nA and nB), a direction control input (DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 1.2 V and 5.5 V making the device suitable for translating between any of the low voltage nodes (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V). Pins nA and DIR are referenced to VCC(A) and pins nB are referenced to VCC(B). A HIGH on DIR allows transmission from nA to nB and a LOW on DIR allows transmission from nB to nA.
Details
The 74LVCH2T45GS transceiver is an advanced electronic component that has revolutionized the way we connect devices and communicate with each other. This transceiver enables seamless transmission of data between devices over short and long distances, without interference or signal loss.
Hot Tags: Electronic Component Transceiver 74LVCH2T45GS, China Electronic Component Transceiver 74LVCH2T45GS suppliers, manufacturers, fiber optic transceiver, handheld transceiver, wireless transceiver, ethernet transceiver, optical transceiver, radio transceiver
