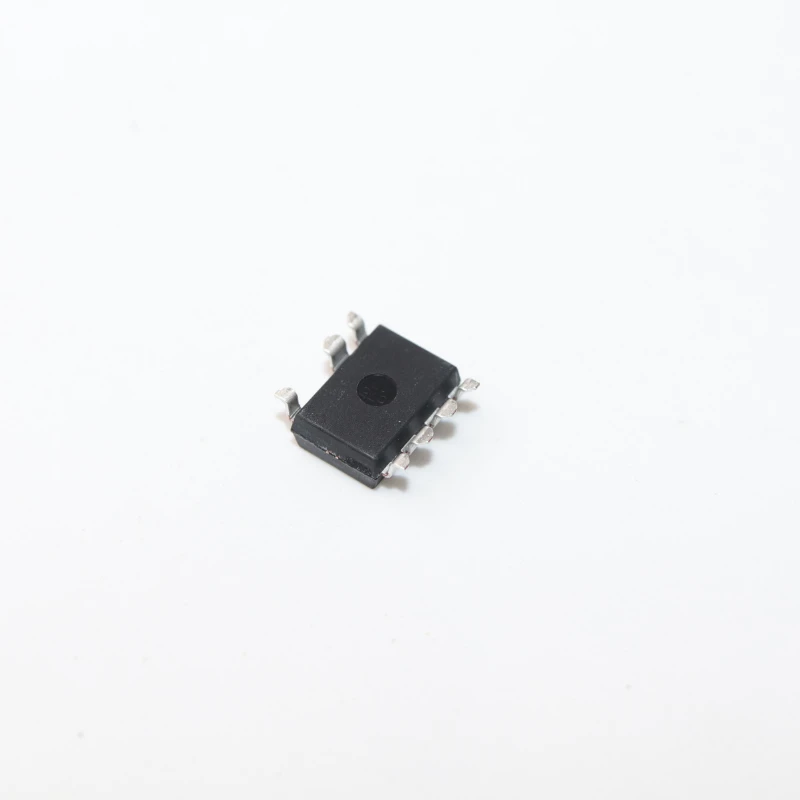

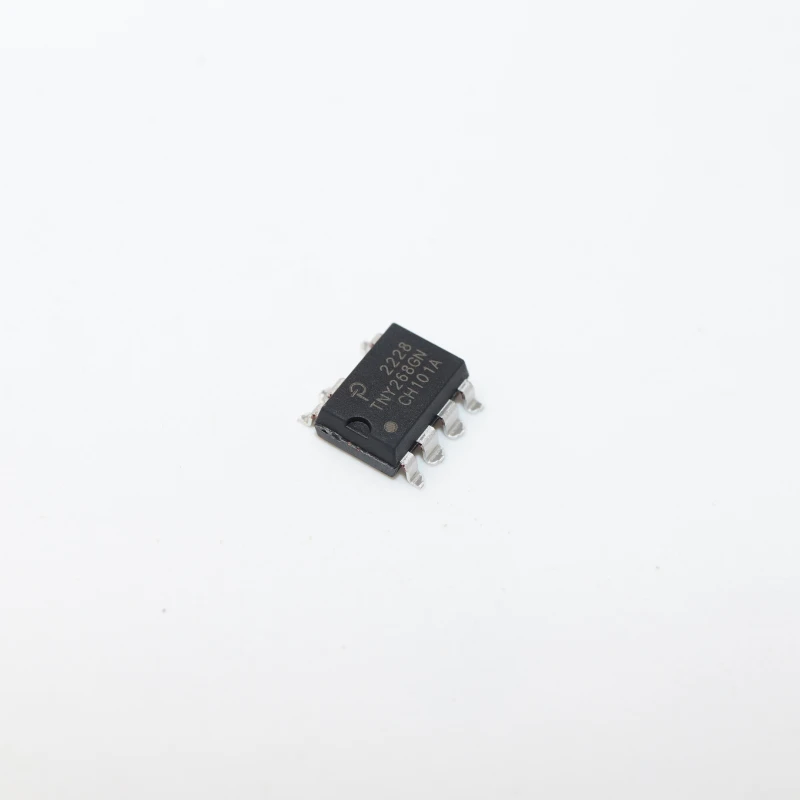

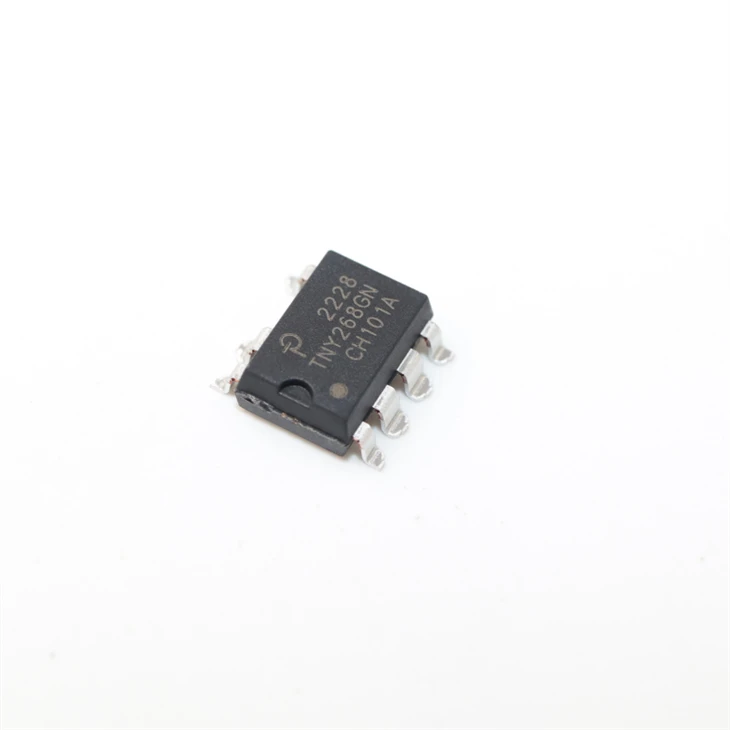

TNY268GN

The TNY268GN is a highly efficient and reliable Off-Line Switcher that has been designed to enhance energy savings. Its integrated auto-restart circuit ensures safe operation by limiting output power during fault conditions such as output short-circuit or open loop.

The TNY268GN is a 16W enhanced energy efficient low power Off-Line Switcher fully integrated auto-restart circuit safely limits output power during fault conditions such as output short-circuit or open loop and reducing component count. Features The TNY268GN is a highly efficient and reliable Off-Line Switcher that has been designed to enhance energy savings. Its integrated auto-restart circuit ensures safe operation by limiting output power during fault conditions such as output short-circuit or open loop. This helps to reduce component count and ensures seamless operation. One of the most notable features of the TinySwitch-II is the integration of a 700V power MOSFET, oscillator, high voltage switched current source, current limit, and thermal shutdown circuitry into a single, monolithic device. This provides the ultimate convenience and ease of use for anyone in need of an efficient and dependable solution. The power needed to start and operate is obtained from the DRAIN pin voltage, thus eradicating the requirement for a bias winding and network. Furthermore, the TinySwitch-II gadget encompasses auto-restart, line under-voltage detection, and frequency jittering. A groundbreaking design reduces audio frequency elements in the straightforward ON, resulting in a positive and dynamic outcome. Parameters Packaging method Input voltage Operational temperature TO220 1.5V - 7V -20℃ to 125℃ Application Electrical Control System、Switch Battery Control Postive Photo Pin Configuration Hot Tags: tny268gn, China tny268gn suppliers, manufacturers
