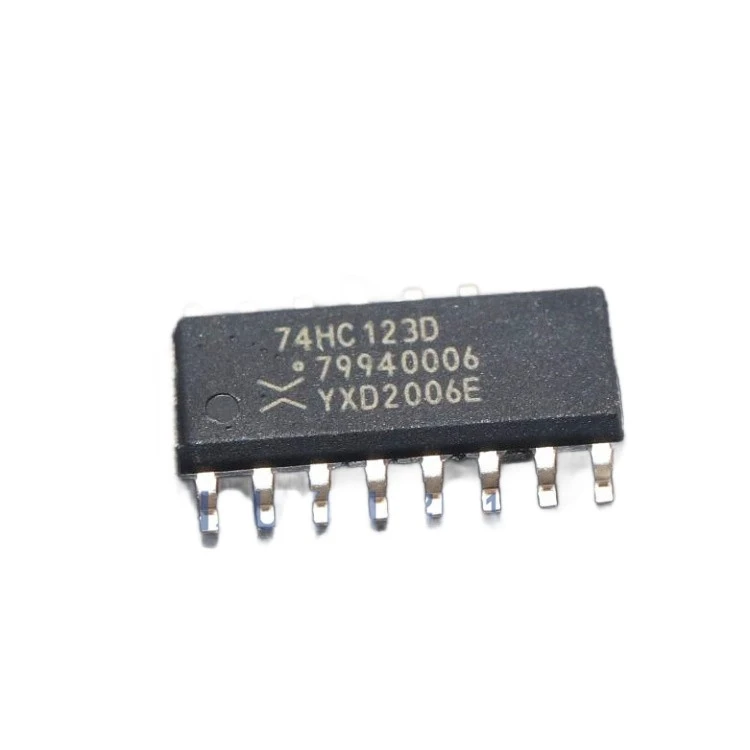

74HC123D

74HCT123 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL. Also it is dual retriggerable monostable multivibrator with reset.

74HCT123 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL. Also it is dual retriggerable monostable multivibrator with reset. Features The 74HC123D is a retriggerable monostable multivibrator that belongs to the family of CMOS devices. It is a highly reliable and efficient DC-triggered device that offers active HIGH or active LOW inputs for seamless operation. Moreover, the device comes with a direct reset feature that allows you to terminate output pulses with ease. One of the most remarkable features of this device is its retriggerable capability. This means that you can obtain very long pulses of up to 100% duty factor without any hassles. The device's ability to retrigger makes it suitable for a wide range of applications, including timing and control circuits. In summary, the 74HC123D is an outstanding DC-triggered monostable multivibrator that offers an array of impressive features. Whether you're looking to generate long pulses or terminate output pulses, this device has got you covered. Its CMOS technology further ensures reliability and high efficiency, making it a must-have for any serious electronics enthusiast. Parameters Packaging method Input voltage Operational temperature SOIC-16 2 V to 6 V -40 to +125℃ Application Timing and Control Applications in Digital Systems Postive Photo Pin Configuration Hot Tags: 74hc123d, China 74hc123d suppliers, manufacturers, popular integrated circuits, microcontroller integrated circuit, modern semiconductor devices for integrated circuits, chips integrated circuits, popular integrated circuit, electromagnetic compatibility of integrated circuits
