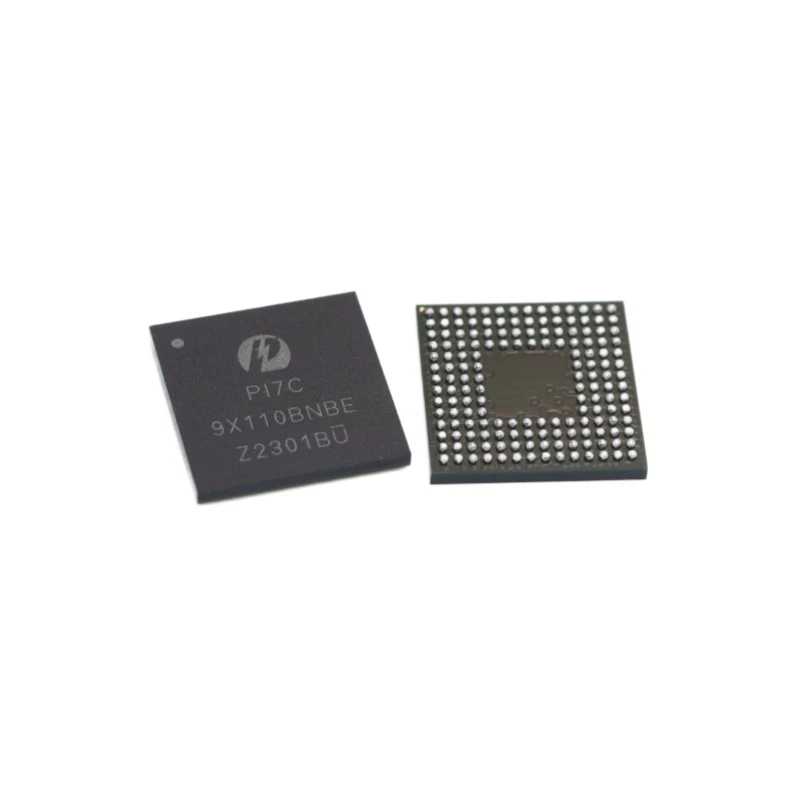

PI7C9X110BNB

PI7C9X110 is a PCIe-to-PCI bridge.PI7C9X110B supports forward and reverse bridging.In forward bridge mode,PI7C9X110 has an x1 PCI Express upstream port and a 32-bit PCI downstream port.The 32-bit PCI downstream port is 66MHz capable（see figure 1-1）.In reverse bridge mode,PI7C9X110 has a 32-bit PCI upstream port and an x1 PCI Express downstream port.

PI7C9X110 is a PCIe-to-PCI bridge. PI7C9X110B supports forward and reverse bridging.In forward bridge mode,PI7C9X110 has an x1 PCI Express upstream port and a 32-bit PCI downstream port.The 32-bit PCI downstream port is 66MHz capable（see figure 1-1）.In reverse bridge mode,PI7C9X110 has a 32-bit PCI upstream port and an x1 PCI Express downstream port. Features The PI7C9X110 is a highly advanced and innovative technology that serves as a PCIe-to-PCI bridge, providing a Physical Layer interface with a Lane polarity toggle and Virtual Isochronous support. It is designed to enable efficient and seamless data transfer between PCI Express and PCI buses, delivering superior performance and reliability. With support for advanced power management features such as ASPM, the PI7C9X110 is also an energy-efficient solution that helps to reduce power consumption and extend the lifespan of devices. It is equipped with Beacon support and CRC as well as ECRC, which enable it to detect and correct errors in real-time, ensuring data integrity and uninterrupted data transmission. The PI7C9X110 provides advanced error reporting capabilities, allowing for the efficient diagnosis and resolution of errors. Its versatile and robust design makes it ideal for a wide range of applications, including industrial automation, medical devices, gaming, and telecommunications, among others. Overall, the PI7C9X110 is a powerful and reliable technology that offers unmatched performance and efficiency, making it an essential component for businesses and organizations seeking to enhance their productivity and stay competitive in today's fast-paced digital marketplace. Parameters Packaging method Input voltage Operational temperature LFBGA 1.6V to 2V -40 to 85℃ Application PCI to PCI Bridge Postive Photo Outline drawing Hot Tags: pi7c9x110bnb, China pi7c9x110bnb suppliers, manufacturers, wifi integrated circui
