M684-B
- Part number
- M684-B
- Category
- Waterproof Connectors
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Specifications
| Model | M684-B |
|---|---|
| IP code | IP 68 |
| Rated current / voltage | 24A 450VAC |
| Number of poles | 2P/3P/4P/5P |
| Connecting capacity | 0.5~2.5mm² |
| Connection type | Screw connection |
| Temperature range | -40℃ ~ +105℃ |
| Available cable diameter | 2*M20 (4-8mm/6-11mm) |

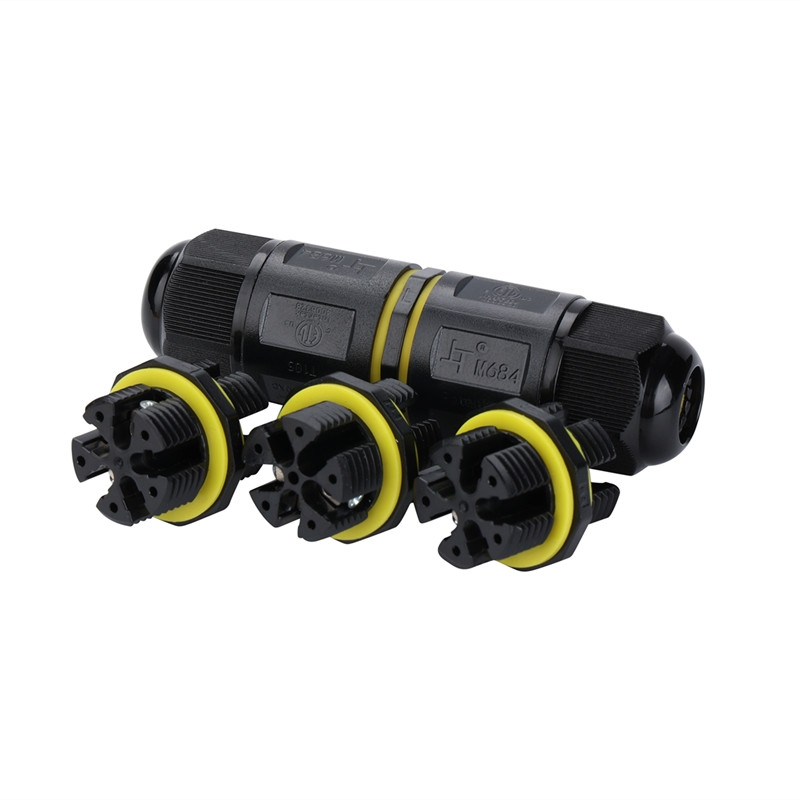

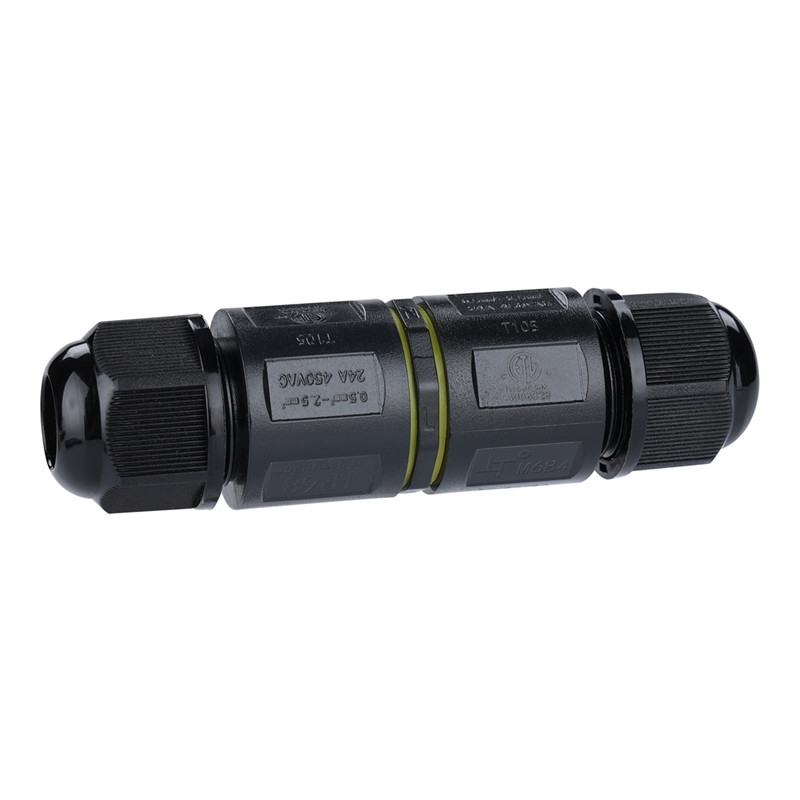

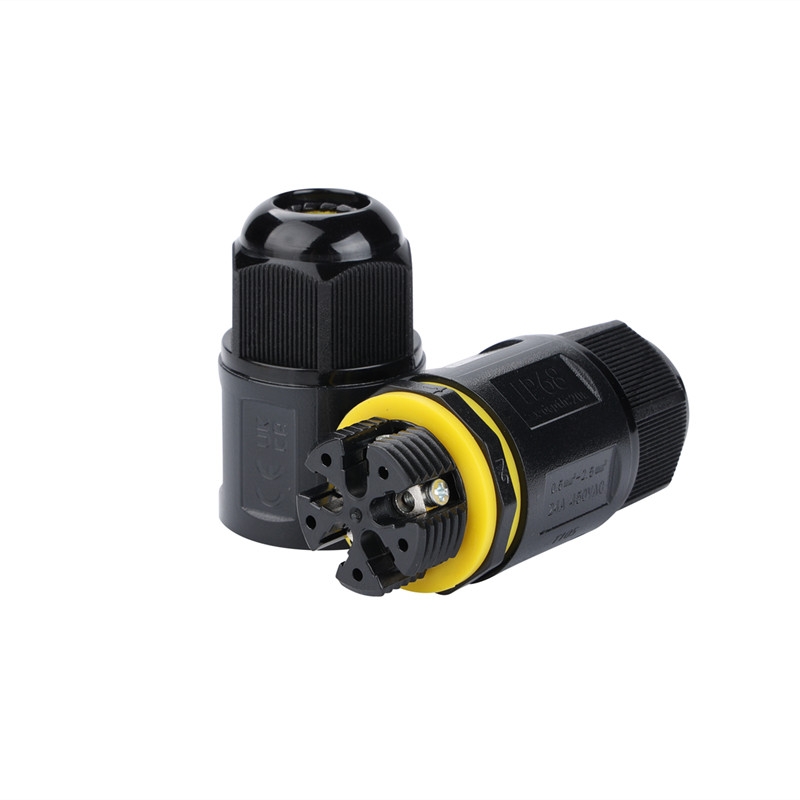

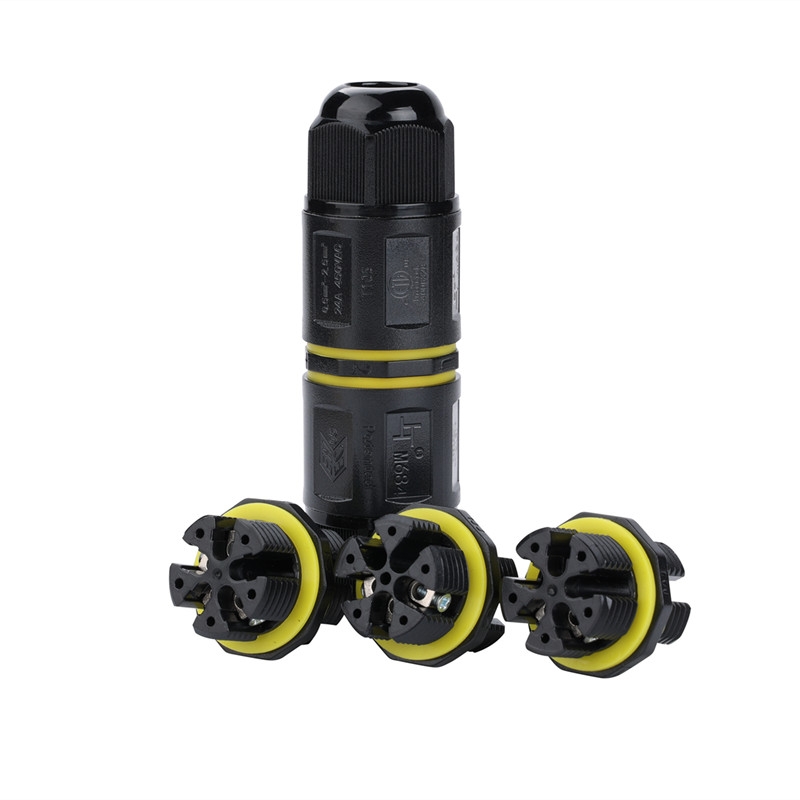

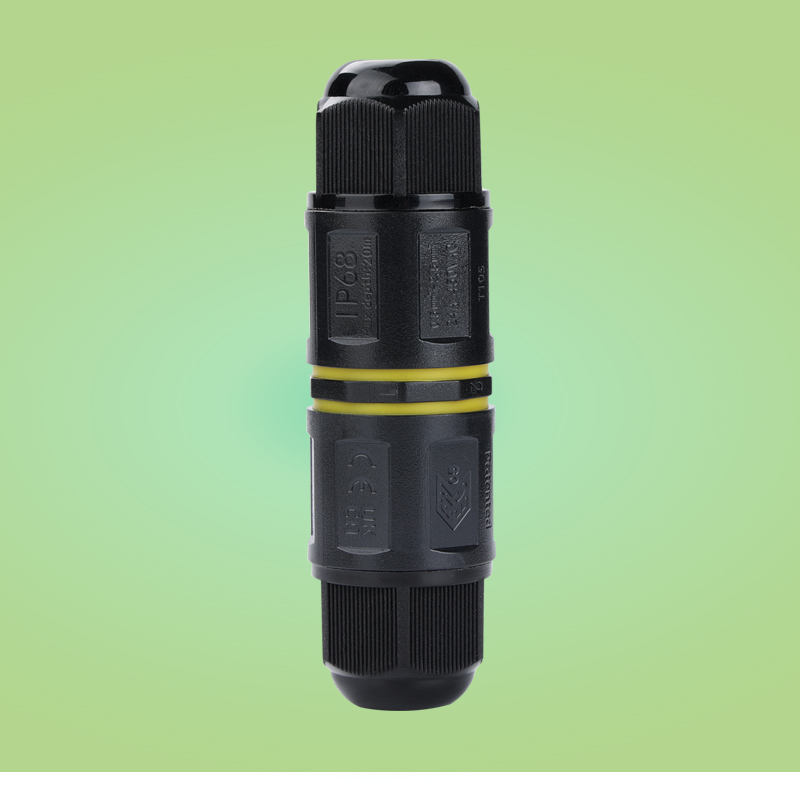

Product images
Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Prepare your inquiry
Include the full part number, quantity, required date and any packaging or documentation requirements. For several line items, attach your BOM.
BOM preparation guide →
