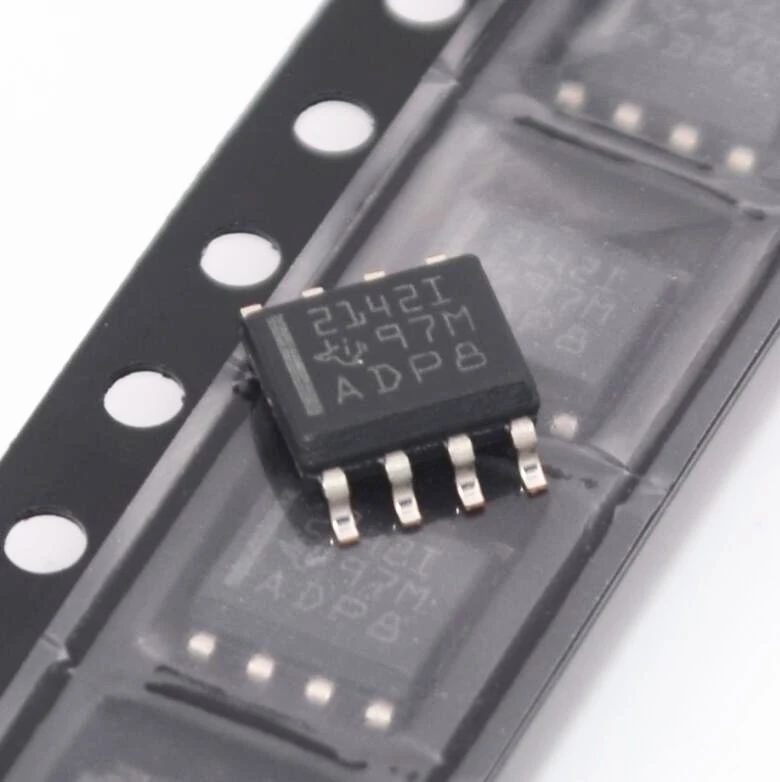

TLE2142IDR

The TLE214x and TLE214xA devices are high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process. The TLE214xA is a tighter offset voltage grade of the TLE214x. Both are pin-compatible upgrades to standard industry products.

The TLE2142IDR is a high-performance operational amplifier designed for a wide range of applications that require precision and reliability. As a top-rated manufacturer in China, we take pride in the quality and performance of our products, and the TLE2142IDR is no exception. One of the standout features of the TLE2142IDR is its low offset voltage and low-drift over temperature performance, making it ideal for use in instrumentation and control applications. With a maximum offset voltage of only 250μV and a typical temperature drift of less than 2μV/°C, the TLE2142IDR ensures that your system can maintain accuracy and stability over a wide temperature range. In addition, the TLE2142IDR has a slew rate of up to 17V/μs, providing fast settling and response times for high-speed applications. With a wide bandwidth of 10MHz and a low noise density of 4.5nV/√Hz at 1kHz, the TLE2142IDR can deliver high gain and low distortion in a variety of signal-conditioning applications. The TLE2142IDR also features excellent common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), making it ideal for use in systems with noisy inputs or power supplies. With a typical CMRR of 120dB and a PSRR of 100dB, the TLE2142IDR can reject both common-mode and power-supply noise by a significant amount, ensuring accurate and reliable performance in even the most challenging environments. The TLE2142IDR is also designed to be robust and reliable, with a wide input voltage range from ±2V to ±18V and overvoltage protection up to ±22V. The device is also specified for operation over the industrial temperature range of -40°C to +125°C, ensuring that it can perform reliably in harsh environments. Overall, the TLE2142IDR is an excellent choice for any high-performance application that requires precision, reliability, and fast response times. As a leading manufacturer in China, we are committed to delivering high-quality products that meet and exceed your expectations. Order your TLE2142IDR today and experience the difference! ●Low Noise 10 Hz . . . 15 nV/√Hz 1 kHz . . . 10.5 nV/√Hz ●10000-pF Load Capability ●20-mA Min Short-Circuit Output Current ●7-V/μs Min Slew Rate ●High Gain-Bandwidth Product... 5.9 MHz ●Low VIO . . . 500 μV Max at 25°C ●Single or Split Supply . . . 4 V to 44 V ●Fast Settling Time 340 ns to 0.1% 400 ns to 0.01% ●Saturation Recovery . . . 150 ns ●Large Output Swing VCC− +0.1 V to VCC+ − 1 V Description The TLE214x and TLE214xA devices are high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process. The TLE214xA is a tighter offset voltage grade of the TLE214x. Both are pin-compatible upgrades to standard industry products. The design incorporates an input stage that simultaneously achieves low audio-band noise of 10.5 nV/√Hz with a 10-Hz 1/f corner and symmetrical 40-V/μs slew rate typically with loads up to 800 pF. The resulting low distortion and high power bandwidth are important in high-fidelity audio applications. A fast settling time of 340 ns to 0.1% of a 10-V step with a 2-kΩ/100-pF load is useful in fast actuator/positioning drivers. Under similar test conditions, settling time to 0.01% is 400 ns. The devices are stable with capacitive loads up to 10 nF, although the 6-MHz bandwidth decreases to 1.8 MHz at this high loading level. As such, the TLE214x and TLE214xA are useful for low-droop sample-and-holds and direct buffering of long cables, including 4-mA to 20-mA current loops. The special design also exhibits an improved insensitivity to inherent integrated circuit component mismatches as is evidenced by a 500-μV maximum offset voltage and 1.7-μV/°C typical drift. Minimum common-mode rejection ratio and supply-voltage rejection ratio are 85 dB and 90 dB, respectively. Device performance is relatively independent of supply voltage over the ±2-V to ±22-V range. Inputs can operate between VCC− − 0.3 to VCC+ − 1.8 V without inducing phase reversal, although excessive input current may flow out of each input exceeding the lower common-mode input range. The all-npn output stage provides a nearly rail-to-rail output swing of VCC− − 0.1 to VCC+ − 1 V under light current-loading conditions. The device can sustain shorts to either supply since output current is internally limited, but care must be taken to ensure that maximum package power dissipation is not exceeded. Both versions can also be used as comparators. Differential inputs of VCC± can be maintained without damage to the device. Open-loop propagation delay with TTL supply levels is typically 200 ns. This gives a good indication as to output stage saturation recovery when the device is driven beyond the limits of recommended output swing. Both the TLE214x and TLE214xA are available in a wide variety of packages, including both the industry-standard 8-pin small-outline version and chip form for high-density system applications. The C-suffix devices are characterized for operation from 0°C to 70°C, I-suffix devices from −40°C to 105°C, and M-suffix devices over the full military temperature range of −55°C to 125°C. Why choose us? We strive for excellence in all aspects of our business, from manufacturing to customer service. We have established a perfect internal management system and risk prevention system. We have a strong commitment to ethical business practices and social responsibility. We aim at the product to achieve the operation state, make our products create the greatest benefit for customers, thus achieving win-win results. Welcome the customers to come to consult, negotiate and cooperate. We have a dedicated team of professionals who are committed to delivering outstanding customer service. We strengthen the internal management of the company and continually innovate the technology of our TLE2142IDR. We are committed to continuous improvement to meet the changing needs of our customers. Our company has advanced hardware facilities, strong research and development strength and technical advantages. Our customers can rely on us for high-quality Precision Op Amp products and services. We strictly discipline ourselves and always strive to make our products meticulous, perfect, high quality and low price. Hot Tags: tle2142idr, China tle2142idr suppliers, manufacturers, OP177GPZ Marking OP177 DIP8 Precision Op Amp, AD8539ARZ Marking AD8539 SOP8 Precision Op Amp, OP471GS Marking OP471G SOP16 Precision Op Amp, TLE2142IDR Marking 21421 SOP8 Precision Op Amp, AD8538AUJZ Marking AOC SOT235 Precision Op Amp, Comparators Amplifier
