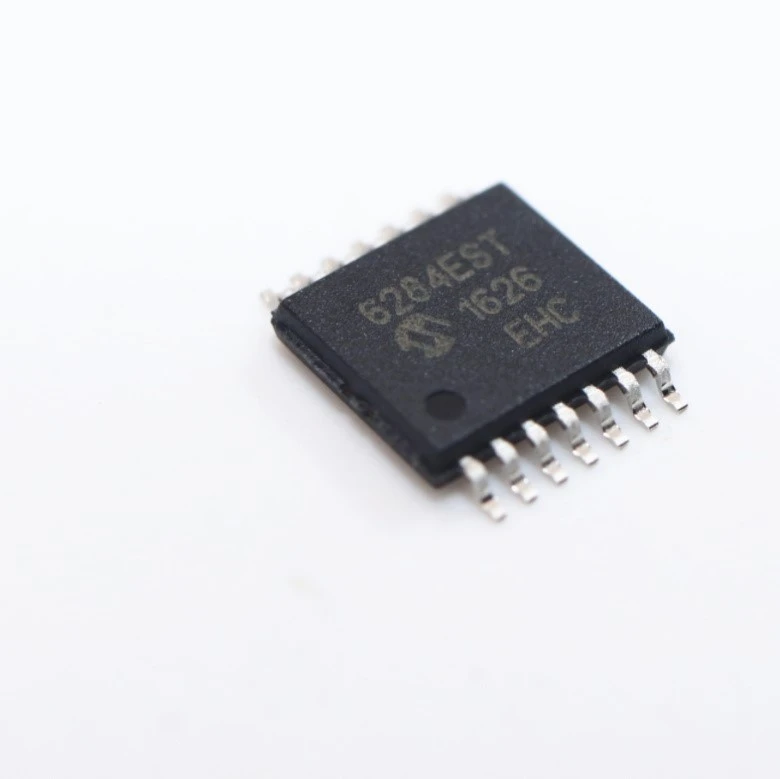

MCP6284-E

The series of Microchip Technology Inc. MCP6281/1R/2/3/4/5 operational amplifiers provide wide bandwidth for the current. The series features a gain bandwidth product of 5MHz and aphase margin of 65° . This family also operates from a single supply voltage as low as 2.2V, while drawing 450 µA quiescent current.

Product Introduction: MCP6284-E Operational Amplifier As a manufacturer of high-quality operational amplifiers, we are proud to introduce our latest product, the MCP6284-E Operational Amplifier. This is a precision operational amplifier designed for general-purpose applications. The MCP6284-E has a wide range of features that make it highly desirable to merchants looking for high-quality yet affordable operational amplifiers. In this product introduction, we will explore some of the key features that make the MCP6284-E an excellent choice of operational amplifier. 1. High precision The MCP6284-E features a high precision design that ensures reliable and precise performance. It has a maximum offset voltage of just 400 uV and an open-loop gain of 110 dB, making it highly accurate and ideal for high-precision applications. Its low input bias current of just 4.0 pA makes it highly suitable for use in low power applications. 2. Wide voltage range The MCP6284-E has a wide voltage range, making it highly flexible in terms of its usage. It can operate on a supply voltage of between 2.5V to 5.5V, making it an ideal choice for portable and battery-powered devices. The device also has a wide output swing of ±12 V with a 5 V supply voltage, making it highly versatile as well. 3. Low noise and distortion The MCP6284-E is designed to provide low noise and distortion performance, which ensures clear and accurate data. It has a low voltage noise density of 11 nV/√Hz and a total harmonic distortion plus noise (THD+N) of just 0.0006%, making it highly suitable for use in audio and other sensitive applications. 4. High bandwidth The MCP6284-E features a high bandwidth, which ensures that it can deliver fast and reliable performance. It has a gain bandwidth product of 5.5 MHz and a slew rate of 2.2 V/μs, making it an ideal choice for high-speed data acquisition applications. 5. Low power consumption The MCP6284-E is designed to consume minimal power, making it highly energy-efficient. It has a quiescent current of just 500 μA and a power consumption of just 2.5 mA at a 5 V supply voltage. This makes it an ideal choice for battery-powered and portable devices that require low power consumption. 6. Small package The MCP6284-E features a small package that makes it highly suitable for use in compact and portable devices. It comes in an 8-pin SOIC package that measures just 3.9 mm x 4.9 mm, making it ideal for use in space-constrained applications. In summary, the MCP6284-E Operational Amplifier is an excellent choice for merchants who are looking for a high-quality, versatile, and affordable operational amplifier. Its high precision, wide voltage range, low noise and distortion, high bandwidth, low power consumption, and small package make it highly suitable for a wide range of applications. Please contact us today to learn more about our products and how we can help you meet your requirements. Features ●Gain Bandwidth Product: 5 MHz ●Supply Current: IQ = 450 µA • Supply Voltage: 2.2V to 6.0V ●Rail-to-Rail Input/Output ●Extended Temperature Range: -40°C to +125°C ●Available in Single, Dual, and Quad Packages ●Single with CS (MCP6283) ●Dual with CS (MCP6285) Applications ●Photodiode Amplifier ●Analog Filters ●Notebooks and PDAs ●Automotive ●Battery-Powered Systems Description The series of Microchip Technology Inc. MCP6281/1R/2/3/4/5 operational amplifiers provide wide bandwidth for the current. The series features a gain bandwidth product of 5MHz and aphase margin of 65° . This family also operates from a single supply voltage as low as 2.2V, while drawing 450 µA quiescent current. Additionally, the MCP6281/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS – 300 mV. The MCP6285 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in Low-power mode. Why choose us? We are committed to providing world-class Operational Amplifiers to businesses and clients around the globe. Our MCP6284-E not only incorporates the necessary core technologies, but is also as innovative and superior in performance as ever. We are dedicated to meeting the needs of our customers by providing custom solutions designed to meet their unique requirements. We strongly think that we will do superior and far better. Our Operational Amplifiers are designed to deliver exceptional accuracy, stability, and low noise. We are willing to do everything for our customers with high-quality service, and at the same time guarantee you excellent product quality. Our Operational Amplifiers are trusted by leading manufacturers in various industries, including telecommunications, medical, consumer electronics, and automotive. In this fiercely competitive market economy era and the Internet era, open cooperation is the choice of the times. Many things are successful in cooperation, and cooperation can also highlight win-win progress. Our factory uses the latest technology and manufacturing processes to create reliable and high-performing Operational Amplifiers. We are not afraid of setbacks, perseverance and dedication, regardless of fame and fortune. Hot Tags: mcp6284-e, China mcp6284-e suppliers, manufacturers, MCP6002 I Marking MCP6002I SOP8 Operational amplifiers, MCP6004 I Marking MCP6004 SOP14 Operational amplifiers, Operational Amplifiers, MCP6284 E Marking MCP6284 SOP14 Operational amplifiers, LM358N Marking LM358 DIP8 Operational amplifiers, Amplifier
