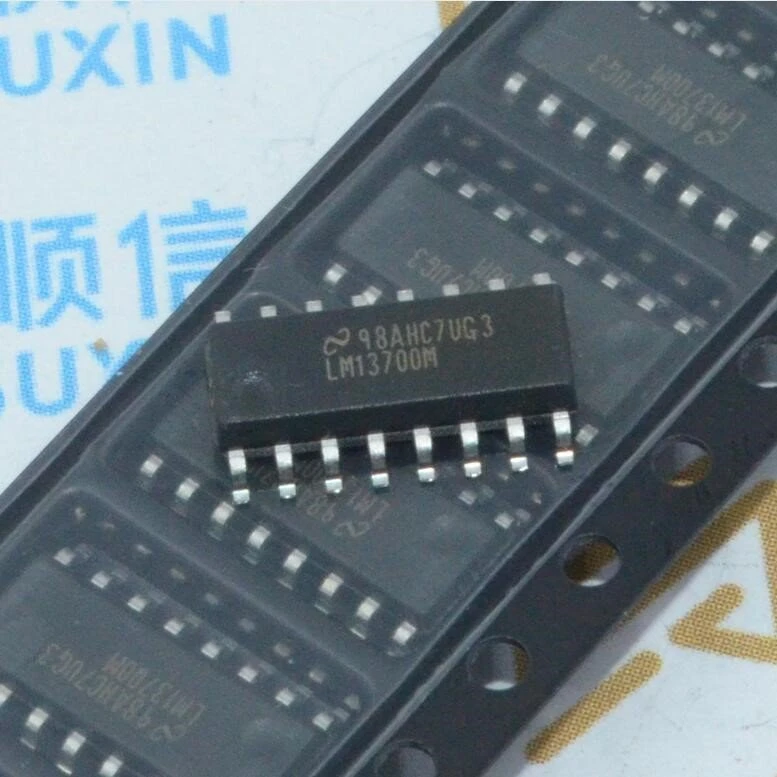

LM13700M

Introducing the LM13700M: Offering High Performance and Versatility to Merchants Worldwide

The LM13700M is a high-performance dual operational transconductance amplifier (OTA) that offers versatility in a wide range of applications. As a manufacturer located in China, we specialize in supplying high-quality electronic components to merchants outside of China. This product is particularly useful for those in the audio and music industry, as it is perfect for designing and constructing high-quality signal processing and filtering circuits.

In this article, we will discuss what makes the LM13700M stand out from other similar products on the market and how it can benefit merchants in various industries. With over 15 years of experience, we have gained valuable insights into the electronics manufacturing industry, and we are committed to delivering high-quality products at competitive prices.

Product Overview

The LM13700M is a dual OTA with two transconductance amplifiers and two op amps. Each OTA has two differential inputs and a single-ended output, which offers flexibility in signal processing and filtering. It operates from a single supply voltage between 2.5V and 15V, making it suitable for a range of battery-powered applications.

This product has a high slew rate of 6.5V/μs, making it ideal for designing circuits that require high-speed signal processing. The LM13700M also has a wide bandwidth of 1MHz, which allows for accurate signal processing without any distortions or phase shifts.

It also offers a low input current of 100nA, making it suitable for use in low-power circuits. The LM13700M also features a low offset voltage of 2mV, which guarantees high accuracy and precision in all signal processing applications.

Key Features

One of the key features of the LM13700M is its versatility. It can be used in a variety of applications, such as:

1. Audio Filter Circuit

The LM13700M is ideal for designing and constructing high-quality audio filter circuits. Its wide bandwidth and low distortions ensure that the signal processed through the circuit is accurate and precise, free from any unwanted noise or distortion.

2. Oscillator Circuit

The LM13700M can also be used to design high-quality oscillator circuits. Its high slew rate and wide bandwidth allow it to generate signals at high frequencies, making it ideal for frequency modulation, phase shifts, and other applications.

3. Voltage-Controlled Amplifier (VCA)

The LM13700M is perfect for designing voltage-controlled amplifiers (VCA) as it has a high transconductance and low gain control voltage range. The VCA allows users to control the gain of a signal by applying an external voltage. This is particularly useful in designing and building effect pedals for guitars and other musical instruments.

4. Envelope Follower

The LM13700M can also be used to design high-quality envelope followers. These circuits are used to detect the envelope of an audio signal and provide an output voltage that corresponds to the envelopes' amplitude. This circuit can be used in a wide range of applications, such as automatic gain control, compressor/limiter circuits, and more.

Advantages of Using the LM13700M

1. High Performance: The LM13700M offers high performance and accuracy in all signal processing applications, thanks to its low input current, low offset voltage, and high slew rate.

2. Versatility: This product is versatile and can be used in a wide range of applications, such as audio filter circuit, VCA, oscillator circuit, and envelope follower.

3. Compact and Durable: The LM13700M is small and compact, making it easy to integrate into a range of circuits. It is also durable and can withstand high temperature and humidity conditions.

4. Cost-Effective: As a manufacturer, we are committed to delivering high-quality products at competitive prices. The LM13700M is an affordable product that offers high performance and versatility to a range of industries.

Conclusion

The LM13700M is a high-performance dual OTA that offers versatility in a wide range of applications. Its high slew rate, low input current, and low offset voltage make it ideal for designing high-quality circuits for the music and audio industry. The LM13700M is an affordable product that delivers high performance and versatility to merchants worldwide.

We hope this product introduction has provided you with valuable insights into the LM13700M and its potential applications. If you have any questions or would like to place an order, please do not hesitate to contact us. We look forward to hearing from you and are dedicated to delivering high-quality products to meet your needs.

Features

●Gm Adjustable Over 6 Decades

●Excellent gm Linearity

●Excellent Matching Between Amplifiers

●Linearizing Diodes for reduced output distortion

●High Impedance Buffers

●High Output Signal-to-Noise Ratio

Applications

●Current-Controlled Amplifiers

●Stereo Audio Amplifiers

●Current-Controlled Impedances

●Current-Controlled Filters

●Current-Controlled Oscillators

●Multiplexers

●Timers

●Sample-and-Hold Circuits

Description

The LM13700 series consists of two current-controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10-dB signal-to-noise improvement referenced to 0.5 percent THD.High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the LM13700 differ from those of the LM13600 in that their input bias currents (and thus their output DC levels) are independent of IABC. This may result in performance superior to that of the LM13600 in audio applications.
